SERIE MEDIA

TIPO BX-CX-DX

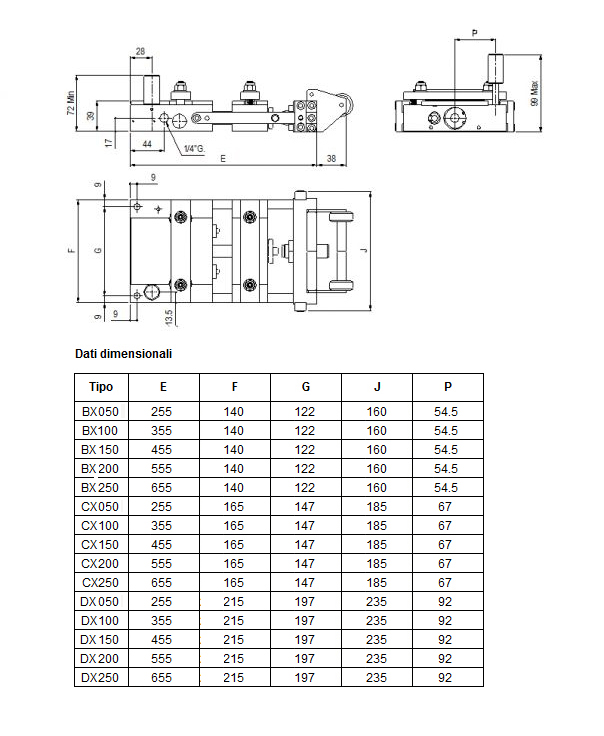

Clicca qui per layout dimensionale

Dati tecnici (Tipo BX-CX-DX)

Tipo	Larghezza max. nastro [mm]	Corsa max. [mm]	Spessore nastro [mm]	Colpi minuto	Pressione pinze fisse [kg]	Pressione pinze mobili [kg]	Forza di trazione [kg]	Consumo d’aria [litri/min.]	Peso [kg]
BX050	75	50	2.00	260	70	158	41	64	6.2
BX100	75	100	2.00	180	70	158	41	92	7.7
BX150	75	150	1.80	150	70	158	41	115	9.2
BX200	75	200	1.60	120	70	158	41	122	10.7
BX250	75	250	1.50	90	70	158	41	115	12.2
CX050	100	50	2.00	240	70	158	41	61	7.3
CX100	100	100	1.80	170	70	158	41	87	8.8
CX150	100	150	1.70	140	70	158	41	107	10.2
CX200	100	200	1.60	110	70	158	41	112	11.7
CX250	100	250	1.50	90	70	158	41	115	13.1
DX050	150	50	1.60	230	70	158	41	59	9.6
DX100	150	100	1.40	160	70	158	41	82	11.2
DX150	150	150	1.20	130	70	158	41	100	12.7
DX200	150	200	1.00	100	70	158	41	102	14.2
DX250	150	250	1.00	80	70	158	41	103	15.7
